Installation
Rlocate the OBD Port on Your Vehicle
The OBD port is located underneath the dashboard on the driver’s side. All vehicles made since 1996 have this port. The OBD socket looks like the image on the right.
OBD Socket in Vehicle

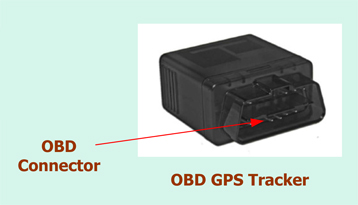

Connect the GPS Tracker to Your Vehicle OBD Port
The OBD port is located underneath the dashboard on the driver’s side. All vehicles made since 1996 have this port. The OBD socket looks like the image on the right. There are status indicators on the device (opposite the OBD socket)
| LED | Description | Status |
| GSM/Cellular (Blue) |
Searching for GSM Network |
Blinking once a second |
| GSM Lock | Blinking once every 3 seconds |
|
| GPS (Green) | Searching for satellite | Solid |
| GPS Lock | Blinking | |
| OBD (Orange) | Ignition OFF | LED OFF |
| Ignition On | LED Blinking |
GPS Tracker Status Indicators
(on the side opposite the OBD connector)

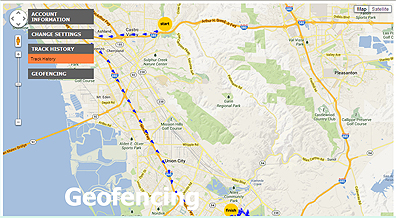

Log Into Your Account
Your login details will be mailed to you. Using the account login and password, log on to your account. Once the blue status LED is blinking once every three seconds, the device is transmitting information to the host server and you can see all the logged information.
